(請約取貨) ZWO 新相機發布 ASI224MC ASI185MC ASI178MC

[Wah!!]

振旺光電 新品發布
3款基于SONY Exmor技术传感器的3款彩色摄像头ASI224MC ASI185MC ASI178MC
高感+低噪+高速 让天文摄影技术又上了一个新台阶


ASI224MC ¥1780.00
1/3"靶面 120万像素 3.75um像素 传承了ASI120所有优点1304X976分辨率下65fps@12Bit ADC 150fps@10bit ADC 高速传输满足所有行星拍摄
红外感光大幅增强，读出噪声大幅降低


量子效率曲线，峰值在红色部分，估算绝对值在75%-80%

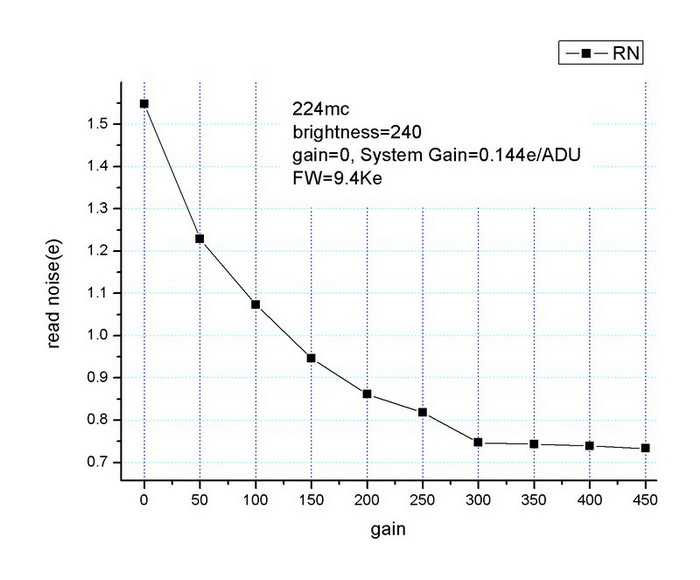

低至0.75e的读出噪声，可以和科学级的EMCCD sCMOS 传感器媲美
超高信噪比(SNR)使得最高增益支持到60db相当于相机ISO 1024000


无论是行星还是明亮的深空目标，都是ASI224拍摄的领域
来看ASI224MC的惊鸿一瞥，世界级的土星


天王星


M56 星团


NGC7331


400牛下的M57


细节可以和哈勃媲美


自带150度2.1mm镜头，横扫银河


ASI185MC ¥2280.00

1/1.9"靶面 230万像素 3.75um像素, 和 ASI224同属于同一个系列
1944X1224分辨率下54fps@12bit ADC 108fps@10bit ADC 高速传输满足所有需求
QE曲线和224非常类似，读出噪声略大，但增大的靶面和速度应该还是受不少人喜欢


量子效率曲线


读出噪声曲线


自带2.5mm镜头，实现170度的视角，完美展现星空


ASI178MC ¥2280.00

1/1.8"靶面 600万像素 2.4um像素 背照式14bit ADC传感器
大分辨率，大靶面，高速度，低噪声，14bit ADC 全是诱惑！
3096×2080分辨率下 30fps@14bit ADC 60fps@10bit ADC 高速传输，月面日面杀手本色
就看你电脑够不够快后期能不能处理得过来了
量子效率曲线


超低读出噪声 1.4-2.2e


tiantian大师帮忙测试的M81 via 60ED


--------------------

團購報名:
1.
2.

以上所列為优惠期間的價格 截止日期 2015-08-15

[Wah!!]

優惠期有限, 過後恢復原價哦!

[willis]

1.Willis  , ASI178MC x 1

Thanks!

[tommy_tse]

Why are they all color cameras?

Why not monochrome black and white camera for moon and sun and planets with filters?

Does each camera come with the wide angle lens?

Which is the best camera for Saturn and Jupiter/
Which is best for Moon?
Which is best for Sun?

[tommy_tse]

1. Willis: ASI178MC x1
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1

[Wah!!]

Because there is no mono version manufactured by Sony.

It comes with a lens.

I think all of them are good for planets/sun/moon.
Two things you need to consider:
- Higher the resolution of the camera, larger the usable field of your telescope is required.
- Higher the pixels/sec, faster the computer is needed. SSD is a must for high speed camera.

[Subaru]

1. Willis: ASI178MC x1
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1

[willis]

1. Willis: ASI178MC x2
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1

[MIB]

1. Willis: ASI178MC x1
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1
4. MIB: ASI178MC x1

[willis]

1. Willis: ASI178MC x2
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1
4. MIB: ASI178MC x1


Hi Wah!
I guess Mr. MIB miss copied the previous post, which I added one more order. Pls totally order 2 ASI178MC for me. Thanks!
Willis

[ham]

delete

[ham]

duplicate delete

[ham]

1. Willis: ASI178MC x2
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1
4. MIB: ASI178MC x1
5. ham: ASI178MC x1

[cyyek]

請問
1. Window 8 & 10可用嗎？
2. Driver 會否影響別的 Camera Driver？
3. 人仔跌得急，你收人仔定港紙？

[sothirsty]

1. Willis: ASI178MC x2
2. tommy_tse: ASI224MC x1, ASI185MC x1, ASI178MC x1
3. Subaru: ASI178MC x1
4. MIB: ASI178MC x1
5. ham: ASI178MC x1
6. Sothirsty ASI178MC x1
